Manual UV Thickness Measurement

The Polysee HD system is designed for plastic sheet manufacturers with the most demanding accuracy requirements. This new system contains all the advantages of the Polysee 9000 but introduces several new ones, most notably the super resolution optics that allow for high accuracy measurements of the UV protective layer on co-extruded sheets.

Optics


The Polysee HD uses a completely redesigned optical unit with several magnifications and illumination options. These options allow more accurate inspection of the sheet layers and zoom in on the entire sheet cross section or on any one of the co-extruded layers.


Software


The system uses our own Polysee software that allows it to be installed on Windows XP/7 based computer systems. In addition to the measurement data and reports, the operator can save sample images under different lighting conditions. At the end of the measurement, the Polysee software displays a graph of the layer distribution across the sheet, helping the operators set the line machinery and manufacture higher quality sheets while saving valuable UV material.

Optics


The Polysee HD uses a completely redesigned optical unit with several magnifications and illumination options. These options allow more accurate inspection of the sheet layers and zoom in on the entire sheet cross section or on any one of the co-extruded layers.


Software


The system uses our own Polysee software that allows it to be installed on Windows XP/7 based computer systems. In addition to the measurement data and reports, the operator can save sample images under different lighting conditions. At the end of the measurement, the Polysee software displays a graph of the layer distribution across the sheet, helping the operators set the line machinery and manufacture higher quality sheets while saving valuable UV material.
Polysee-HD-1024x1024-500x500

Illumination system

Special illumination system designed for co-extruded UV layer inspection


Sample preperation

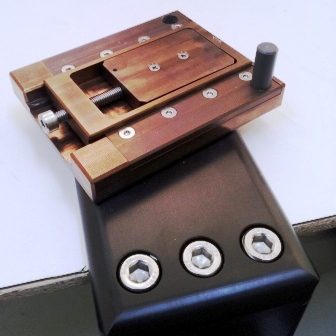

Includes special sample holders and all necessary tools for sample preparation


Magnifications

Several magnification options for even the thinnest layers


Custom software

Polysee software custom designed for the manufacturing process of multilayer plastics

Illumination system

Special illumination system designed for co-extruded UV layer inspection


Sample preperation

Includes special sample holders and all necessary tools for sample preparation


Magnifications

Several magnification options for even the thinnest layers


Custom software

Polysee software custom designed for the manufacturing process of multilayer plastics

Advantages

Designed for co-extruded sheets

The Polysee HD system was designed specifically for co-extruded sheet manufacturers. It is not an “off the shelf” generic microscope but a custom measurement system.

Sample preparation kit included

The Polysee HD system includes a sample preparation tool kit for safely and properly cutting and positioning the sheet sample. This is of paramount importance for getting accurate measurements.

Advanced illumination system

The system utilizes multiple light sources – reflective, refractive and UV enhanced for unparalleled image quality and accuracy.

Customer-driven specialized software

The Polysee HD software was designed for co-extruded sheet manufacturers and has undergone numerous customer-driven improvements over the years.
